LIGHTING SKETCH

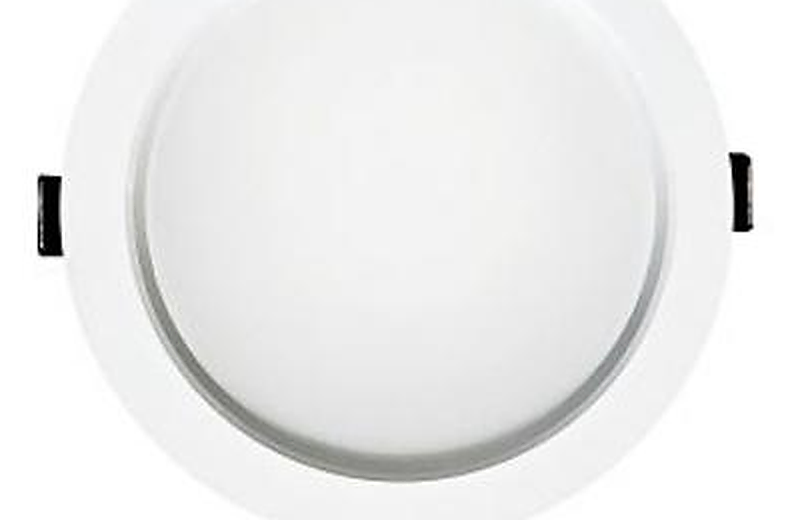

LED Downlight
Model : TOP-6SDL20W-57K
Item ID24847233
Contract price33,000 KRW
Drawing(Unit: mm)
CAD pending
IES photometric file pending
Specifications
| Power Consumption | 20±10% | Power Factor (PF) | 0.9 이상 |
|---|---|---|---|
| Input Voltage | - | Operating Temperature | - |
| Luminous Efficacy | 105 이상 | IP Rating | - |
| Luminous Flux | 2,100이상 | CRI | 80이상 |
| Color Temperature | 5665±355 | Size | - |
| LED Package | Manufacturer unverified | LED Driver | SSL-36V20W-HG |
| Cover | - | Material | - |
| Lifetime | 50,000 hours | Weight | - |
| Application | 형광램프대체 | Input Current (A) | 0.09±10% |
| Initial Flux Ratio (%) | 95% 이상 | Lumen Maintenance (%) | 95 이상 |
Certifications & Status
KS (company)
High Efficiency (company)
Eco Label (company)
KC (company)
장애인기업
장애인기업
Direct Production Confirmation
KONEPS Registered Product
※ Specifications are based on registered product data. Unverified values are not invented.
