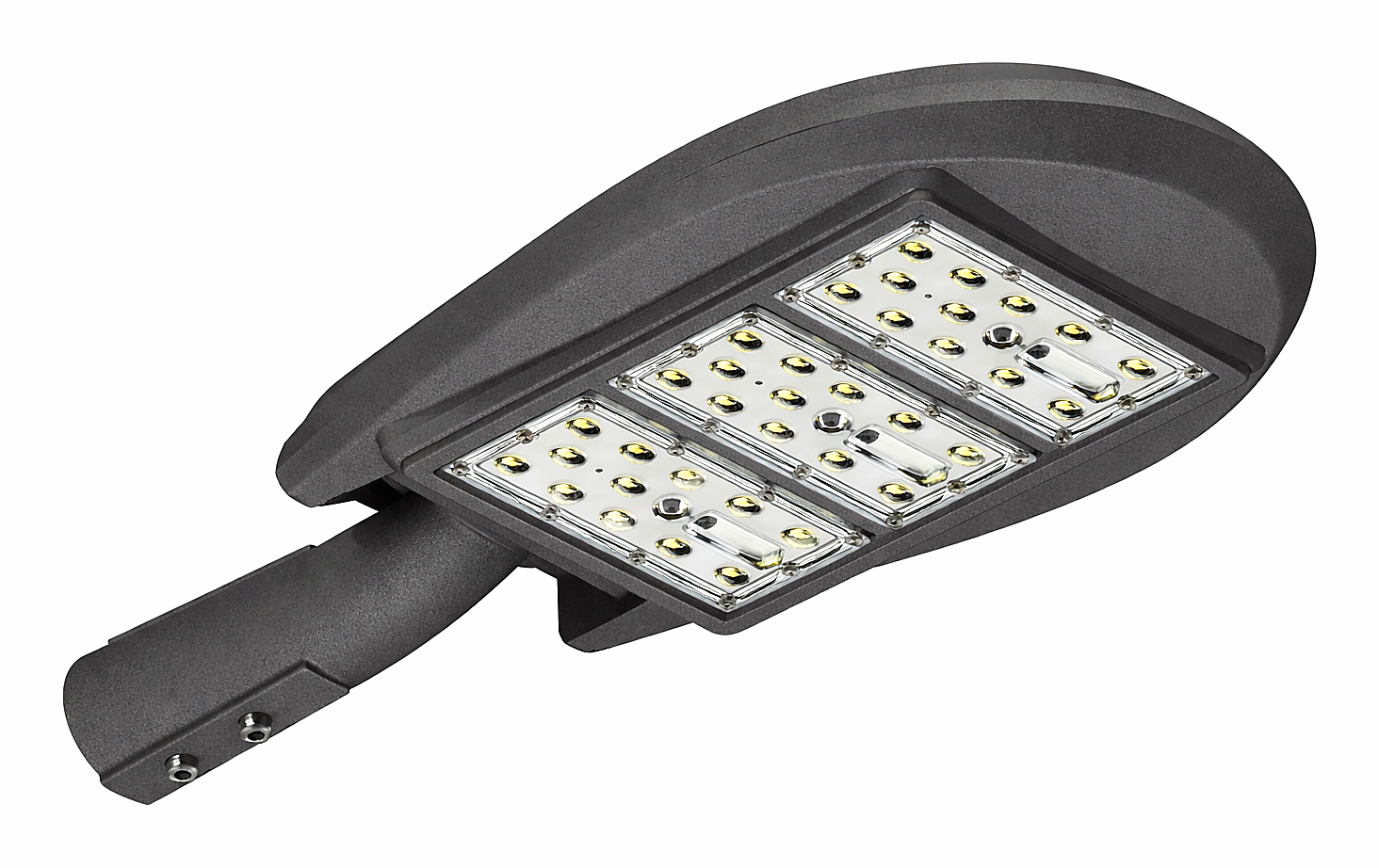

LED Street Light
Model : RTSK-ST075W-40K
Item ID26177396
Contract price285,000 KRW
Drawing(Unit: mm)
CAD pending
IES photometric file pending
Specifications
| Power Consumption | 75±10% | Power Factor (PF) | 0.9이상 |
|---|---|---|---|
| Input Voltage | - | Operating Temperature | - |
| Luminous Efficacy | 115이상 | IP Rating | IP65이상 |
| Luminous Flux | 8,625이상 | CRI | 80이상 |
| Color Temperature | 3,985±275 | Size | 481x213x122 |
| LED Package | Manufacturer unverified | LED Driver | UPF80S36CQ2 |
| Cover | - | Material | AL, |
| Lifetime | 50,000 hours | Weight | - |
| Input Current (A) | 0.34±10% | Initial Flux Ratio (%) | 95%이상 |
| Lumen Maintenance (%) | 90이상 |
Certifications & Status
KS (company)
High Efficiency (company)
Eco Label (company)
KC (company)
장애인기업
장애인기업
Direct Production Confirmation
KONEPS Registered Product
※ Specifications are based on registered product data. Unverified values are not invented.
